Questo modello è disponibile anche con cappucci esterni più corti (diverse misure), con una maggiore distanza tra perni superiori e inferiori per adattarsi a veicoli con cassa ribaltabile a sponda frontale inclinata.
Fissaggio superiore con testata conica
Fissaggio superiore con testata conica
Collare Oscillante
Binotto Group ha sviluppato due applicazioni d’eccellenza per rispondere alle esigenze più complesse, garantendo robustezza, versatilità e affidabilità.
La soluzione esclusiva progettata da Binotto Group per l’heavy duty.
L’apice dell’innovazione tecnologica, nel settore dei cilindri frontali.

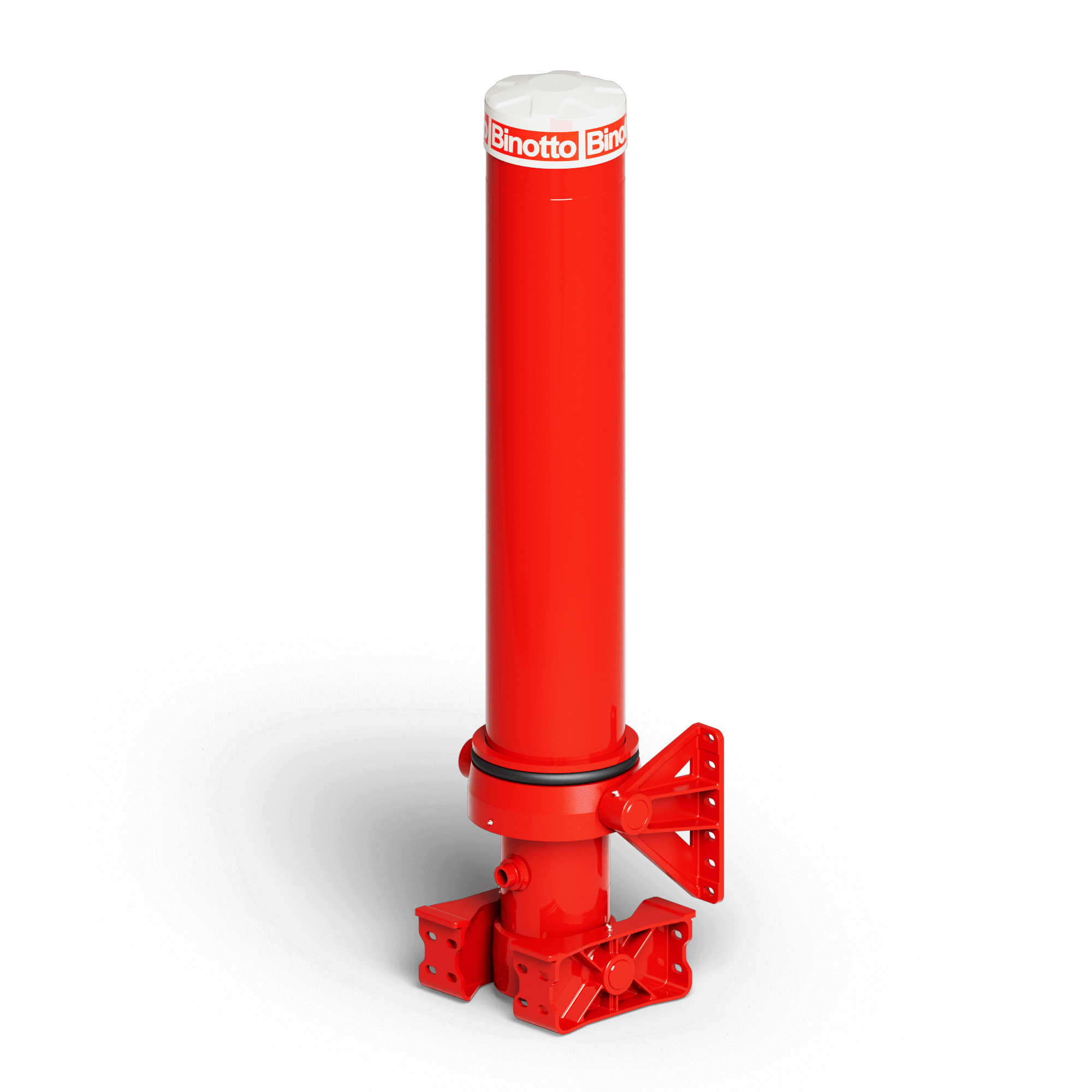

Cilindro MFC
| Description | First Stage | Stages | Stroke [mm] | D*[mm] | H*[mm] | I [mm] | ØO [mm] | Country | |
|---|---|---|---|---|---|---|---|---|---|
| MFC_B3 107/3/2855 | 107 | 3 | 2855 | 331 | 1288 | 55 | 152 | Europe – Asia – Africa – Oceania | |
| MFC_B3 107/3/3265 | 107 | 3 | 3265 | 331 | 1438 | 55 | 152 | Europe – Asia – Africa – Oceania | |
| MFC_B3 107/3/3415 | 107 | 3 | 3415 | 331 | 1488 | 55 | 152 | Europe – Asia – Africa – Oceania | |
| MFC_B3 107/3/3715 | 107 | 3 | 3715 | 331 | 1588 | 55 | 152 | Europe – Asia – Africa – Oceania | |
| MFC_B3 108/3/2285 | 108 | 3 | 2285 | 311 | 1068 | 55 | 152 | Oceania | |
| MFC_B3 108/3/3115 | 108 | 3 | 3115 | 311 | 1368 | 55 | 152 | Oceania | |
| MFC_B3 108/3/3415 | 108 | 3 | 3415 | 311 | 1468 | 55 | 152 | Oceania | |
| MFC_B3 108/4/3805 | 108 | 4 | 3805 | 311 | 1272 | 55 | 152 | Oceania | |
| MFC_B3 108/4/4145 | 108 | 4 | 4145 | 311 | 1372 | 55 | 152 | Oceania | |
| MFC_B3 126/3/3190 | 126 | 3 | 3190 | 343 | 1353 | 72 | 219 | Oceania | |
| MFC_B3 126/3/3230 | 126 | 3 | 3230 | 343 | 1403 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 126/3/3490 | 126 | 3 | 3490 | 343 | 1453 | 72 | 219 | Oceania | |
| MFC_B3 126/3/3680 | 126 | 3 | 3680 | 343 | 1553 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 126/3/3830 | 126 | 3 | 3830 | 343 | 1603 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 126/3/3830 | 126 | 3 | 3830 | 343 | 1603 | 72 | 219 | Oceania | |
| MFC_B3 126/3/4400 | 126 | 3 | 4400 | 343 | 1803 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 126/4/3450 | 126 | 4 | 3450 | 343 | 1157 | 72 | 219 | Oceania | |
| MFC_B3 126/4/3805 | 126 | 4 | 3805 | 343 | 1257 | 72 | 219 | Oceania | |
| MFC_B3 126/4/4145 | 126 | 4 | 4145 | 343 | 1357 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 126/4/4345 | 126 | 4 | 4345 | 343 | 1407 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 126/4/4345 | 126 | 4 | 4345 | 343 | 1407 | 72 | 219 | Oceania | |
| MFC_B3 126/4/4545 | 126 | 4 | 4545 | 343 | 1457 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 126/4/4745 | 126 | 4 | 4745 | 343 | 1507 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 126/4/4745 | 126 | 4 | 4745 | 343 | 1507 | 72 | 219 | Oceania | |
| MFC_B3 126/4/4945 | 126 | 4 | 4945 | 343 | 1557 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 126/4/5145 | 126 | 4 | 5145 | 343 | 1607 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 126/4/5145 | 126 | 4 | 5145 | 343 | 1607 | 72 | 219 | Oceania | |
| MFC_B3 145/3/3230 | 145 | 3 | 3230 | 343 | 1403 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 145/3/3680 | 145 | 3 | 3680 | 343 | 1553 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 145/3/3830 | 145 | 3 | 3830 | 343 | 1603 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 145/4/4110 | 145 | 4 | 4110 | 343 | 1357 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 145/4/4310 | 145 | 4 | 4310 | 343 | 1407 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 145/4/4510 | 145 | 4 | 4510 | 343 | 1457 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 145/4/4710 | 145 | 4 | 4710 | 343 | 1507 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 145/4/4910 | 145 | 4 | 4910 | 343 | 1557 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 145/4/5110 | 145 | 4 | 5110 | 343 | 1607 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 145/4/5310 | 145 | 4 | 5310 | 343 | 1657 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 145/4/5865 | 145 | 4 | 5865 | 343 | 1807 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 145/5/4310 | 145 | 5 | 4310 | 343 | 1161 | 72 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_B3 145/5/5170 | 145 | 5 | 5170 | 343 | 1361 | 72 | 219 | Oceania | |
| MFC_B3 145/5/5670 | 145 | 5 | 5670 | 343 | 1461 | 72 | 219 | Oceania | |
| MFC_B3 165/4/4110 | 165 | 4 | 4110 | 343 | 1347 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/4/4510 | 165 | 4 | 4510 | 343 | 1447 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/4/4710 | 165 | 4 | 4710 | 343 | 1497 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/4/4910 | 165 | 4 | 4910 | 343 | 1547 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/4/5110 | 165 | 4 | 5110 | 343 | 1597 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/4/5310 | 165 | 4 | 5310 | 343 | 1647 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/4/5865 | 165 | 4 | 5865 | 343 | 1797 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/5/5135 | 165 | 5 | 5135 | 343 | 1351 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/5/5385 | 165 | 5 | 5385 | 343 | 1401 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/5/5635 | 165 | 5 | 5635 | 343 | 1451 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/5/6135 | 165 | 5 | 6135 | 343 | 1551 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/5/6135 | 165 | 5 | 6135 | 343 | 1551 | 82 | 244 | Oceania | |
| MFC_B3 165/5/6385 | 165 | 5 | 6385 | 343 | 1601 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/5/6825 | 165 | 5 | 6825 | 343 | 1701 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/5/7075 | 165 | 5 | 7075 | 343 | 1751 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/5/7325 | 165 | 5 | 7325 | 343 | 1801 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/5/7575 | 165 | 5 | 7575 | 343 | 1851 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/5/7825 | 165 | 5 | 7825 | 343 | 1901 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 165/5/8185 | 165 | 5 | 8185 | 343 | 2001 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 187/5/5135 | 187 | 5 | 5135 | 343 | 1351 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 187/5/5385 | 187 | 5 | 5385 | 343 | 1401 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 187/5/5635 | 187 | 5 | 5635 | 343 | 1451 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 187/5/6135 | 187 | 5 | 6135 | 343 | 1551 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 187/5/6385 | 187 | 5 | 6385 | 343 | 1601 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 187/5/6825 | 187 | 5 | 6825 | 343 | 1701 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 187/5/7075 | 187 | 5 | 7075 | 343 | 1751 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 187/5/7325 | 187 | 5 | 7325 | 343 | 1801 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 187/5/7825 | 187 | 5 | 7825 | 343 | 1901 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 187/5/8185 | 187 | 5 | 8185 | 343 | 2001 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 187/6/8790 | 187 | 6 | 8790 | 843 | 1805 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 187/6/9085 | 187 | 6 | 9085 | 343 | 1855 | 82 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_B3 210/5/6135 | 210 | 5 | 6135 | 343 | 1551 | 82 | 273 | Europe – Asia – Africa – Oceania | |
| MFC_B3 210/5/6825 | 210 | 5 | 6825 | 343 | 1701 | 82 | 273 | Europe – Asia – Africa – Oceania | |
| MFC_B3 210/5/7075 | 210 | 5 | 7075 | 343 | 1751 | 82 | 273 | Europe – Asia – Africa – Oceania | |
| MFC_B3 210/5/7325 | 210 | 5 | 7325 | 343 | 1801 | 82 | 273 | Europe – Asia – Africa – Oceania | |
| MFC_B3 210/5/7825 | 210 | 5 | 7825 | 343 | 1901 | 82 | 273 | Europe – Asia – Africa – Oceania |
| Description | First stage | Stages | Stroke | Oil Inlet | D* | H* | I | ØO | Country | |
|---|---|---|---|---|---|---|---|---|---|---|
| MFC_ANT 129/3/3905 | 129 | 3 | 3905 | STD | 343 | 1628 | 60 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 129/3/4295 | 129 | 3 | 4295 | STD | 343 | 1758 | 60 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 129/4/4314 | 129 | 4 | 4314 | STD | 343 | 1388 | 60 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 129/4/4514 | 129 | 4 | 4514 | STD | 1053 | 1438 | 60 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 129/4/4714 | 129 | 4 | 4714 | STD | 343 | 1488 | 60 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 129/4/5114 | 129 | 4 | 5114 | STD | 1053 | 1608 | 60 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 137/4/4913 | 137 | 4 | 4913 | STD | 1043 | 1358 | 60 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 137/4/4993 | 137 | 4 | 4993 | STD | 1043 | 1558 | 60 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 149/4/3993 | 149 | 4 | 3993 | STD | 343 | 1308 | 60 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 149/4/4113 | 149 | 4 | 4113 | STD | 343 | 1338 | 60 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 149/4/4513 | 149 | 4 | 4513 | STD | 1053 | 1388 | 60 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 149/4/4913 | 149 | 4 | 4913 | STD | 343 | 1538 | 60 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 149/4/5113 | 149 | 4 | 5113 | STD | 343 | 1608 | 60 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 149/4/5713 | 149 | 4 | 5713 | STD | 343 | 1758 | 60 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 149/5/5632 | 149 | 5 | 5632 | STD | 343 | 1438 | 60 | 219 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 157/4/4534 | 157 | 4 | 4534 | STD | 343 | 1447 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 157/5/5828 | 157 | 5 | 5828 | STD | 343 | 1473 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/4/5174 | 169 | 4 | 5174 | STD | 343 | 1627 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/5628 | 169 | 5 | 5628 | STD | 343 | 1437 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/5828 | 169 | 5 | 5828 | STD | 1043 | 1477 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/6228 | 169 | 5 | 6228 | STD | 343 | 1557 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/6228 | 169 | 5 | 6228 | STD | 1043 | 1557 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/6228 | 169 | 5 | 6228 | STD | 1193 | 1557 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/6228 | 169 | 5 | 6228 | STD | 643 | 1557 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/6828 | 169 | 5 | 6828 | STD | 343 | 1697 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/6828 | 169 | 5 | 6828 | STD | 1043 | 1697 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/7128 | 169 | 5 | 7128 | STD | 343 | 1757 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/7128 | 169 | 5 | 7128 | STD | 1293 | 1757 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/7628 | 169 | 5 | 7628 | STD | 343 | 1857 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/7628 | 169 | 5 | 7628 | STD | 893 | 1857 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/7828 | 169 | 5 | 7828 | STD | 1293 | 1937 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/8128 | 169 | 5 | 8128 | STD | 343 | 1997 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/8128 | 169 | 5 | 8128 | STD | 486 | 1997 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/8128 | 169 | 5 | 8128 | 90° OIS | 343 | 1997 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/8128 | 169 | 5 | 8128 | STD | 843 | 1997 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/8128 | 169 | 5 | 8128 | STD | 1293 | 1997 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/9028 | 169 | 5 | 9028 | STD | 893 | 2207 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/9028 | 169 | 5 | 9028 | STD | 343 | 2207 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/9028 | 169 | 5 | 9028 | STD | 493 | 2207 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 169/5/9528 | 169 | 5 | 9528 | STD | 343 | 2307 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 179/5/6201 | 179 | 5 | 6201 | STD | 343 | 1565 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 179/5/6486 | 179 | 5 | 6486 | STD | 1043 | 1695 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 179/5/7601 | 179 | 5 | 7601 | STD | 343 | 1905 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 179/5/7601 | 179 | 5 | 7601 | STD | 643 | 1905 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 179/5/9001 | 179 | 5 | 9001 | STD | 343 | 2195 | 65 | 244 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 191/5/6101 | 191 | 5 | 6101 | STD | 343 | 1540 | 70 | 273 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 191/5/6801 | 191 | 5 | 6801 | STD | 343 | 1700 | 70 | 273 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 191/5/7101 | 191 | 5 | 7101 | STD | 343 | 1760 | 70 | 273 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 191/5/7101 | 191 | 5 | 7101 | STD | 643 | 1760 | 70 | 273 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 191/5/7101 | 191 | 5 | 7101 | STD | 1293 | 1760 | 70 | 273 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 191/5/8101 | 191 | 5 | 8101 | STD | 343 | 2000 | 70 | 273 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 191/5/9001 | 191 | 5 | 9001 | STD | 343 | 2210 | 70 | 273 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 191/6/7695 | 191 | 6 | 7695 | STD | 343 | 1620 | 70 | 273 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 191/6/8535 | 191 | 6 | 8535 | STD | 843 | 1760 | 70 | 273 | Europe – Asia – Africa – Oceania | |
| MFC_ANT 129/4/4674 | 129 | 4 | 4674 | STD | 343 | 1478 | 60 | 219 | South America | |
| MFC_ANT 129/4/5354 | 129 | 4 | 5354 | STD | 343 | 1668 | 60 | 219 | South America | |
| MFC_ANT 191/5/7101 | 191 | 5 | 7101 | STD | 343 | 1760 | 70 | 273 | South America | |
| MFC_ANT 191/6/9015 | 191 | 6 | 9015 | STD | 343 | 1840 | 70 | 273 | South America | |
| ANT 4.5-3-090-AV01 | 4.33″ | 3 | 89.72″ | STD | 5.47″ | 41.66″ | 1.97″ | 5.98″ | North America | |
| ANT 4.5-3-100-AV01 | 4.33″ | 3 | 102.12″ | STD | 5.47″ | 45.79″ | 1.97″ | 5.98″ | North America | |
| ANT 4.5-3-110-AV01 | 4.33″ | 3 | 112.16″ | STD | 5.47″ | 48.74″ | 1.97″ | 5.98″ | North America | |
| ANT 5.5-3-130-AV01 | 5.07″ | 3 | 125.39″ | STD | 6.34″ | 53.27″ | 2.36″ | 7.64″ | North America | |
| ANT 5.5-3-140-AV01 | 5.07″ | 3 | 136.02″ | STD | 6.34″ | 56.81″ | 2.36″ | 7.64″ | North America | |
| ANT 6.5-4-150-AV01 | 5.86″ | 4 | 147.75″ | STD | 7.6″ | 48.55″ | 2.36″ | 8.62″ | North America | |
| ANT 6.5-4-160-AV01 | 5.86″ | 4 | 157.20″ | STD | 7.6″ | 50.91″ | 2.36″ | 8.62″ | North America | |
| ANT 6.5-4-170-AV01 | 5.86″ | 4 | 166.65″ | STD | 7.6″ | 53.27″ | 2.36″ | 8.62″ | North America | |
| ANT 6.5-4-180-AV01 | 5.86″ | 4 | 180.83″ | STD | 7.6″ | 56.81″ | 2.36″ | 8.62″ | North America | |
| ANT 6.5-4-195-AV01 | 5.86″ | 4 | 193.43″ | STD | 7.6″ | 59.96″ | 2.36″ | 8.62″ | North America | |
| ANT 7.5-4-185-AV01 | 6.65″ | 4 | 181.65″ | STD | 9.61″ | 57.36″ | 2.36″ | 9.61″ | North America | |
| ANT 7.5-4-195-AV01 | 6.65″ | 4 | 194.25″ | STD | 9.61″ | 60.51″ | 2.36″ | 9.61″ | North America |
